Handheld 2 Trigger Modes Oscilloscope 500Msa S Sampling Ratio 110Mhz Analog Bandwidth Square Waves Oscilloscopes ,Professional Designed

<p>Specification:</p><p>Channel: 1.</p><p>Screen: 2.4 inch, 320x240.</p><p>Analog bandwidth: 110Mhz.</p><p>Sampling ratio: 500Msa/S.</p><p>1kHz self-test square waves: Standby.</p><p>Lifting time: &lt;3ns.</p><p>Storage depth: 12Kpts.</p><p>Time base scope: 5ns-10s.</p><p>Vertical sensitivity: 20mv/div-100v/div.</p><p>Trigger mode: Normal, automatic.</p><p>Trigger type: Lifting, descending.</p><p>Display: YT/rolling.</p><p>Persistence time: No/1s/.</p><p>Charging method: 5V/800mA.</p><p>Coupler: AC-DC.</p><p>Waveform measurement: 14 kinds.</p><p>Measuring accuracy: ±2%.</p><p>Frequency accuracy: ±0.01%.</p><p>Battery: 3000mAh(Build-in).</p><p></p><p>Note:</p><p>There might be a bit of color distortions due to different computer resolutions.</p><p>There might be a slight error due to different hand measurements.</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

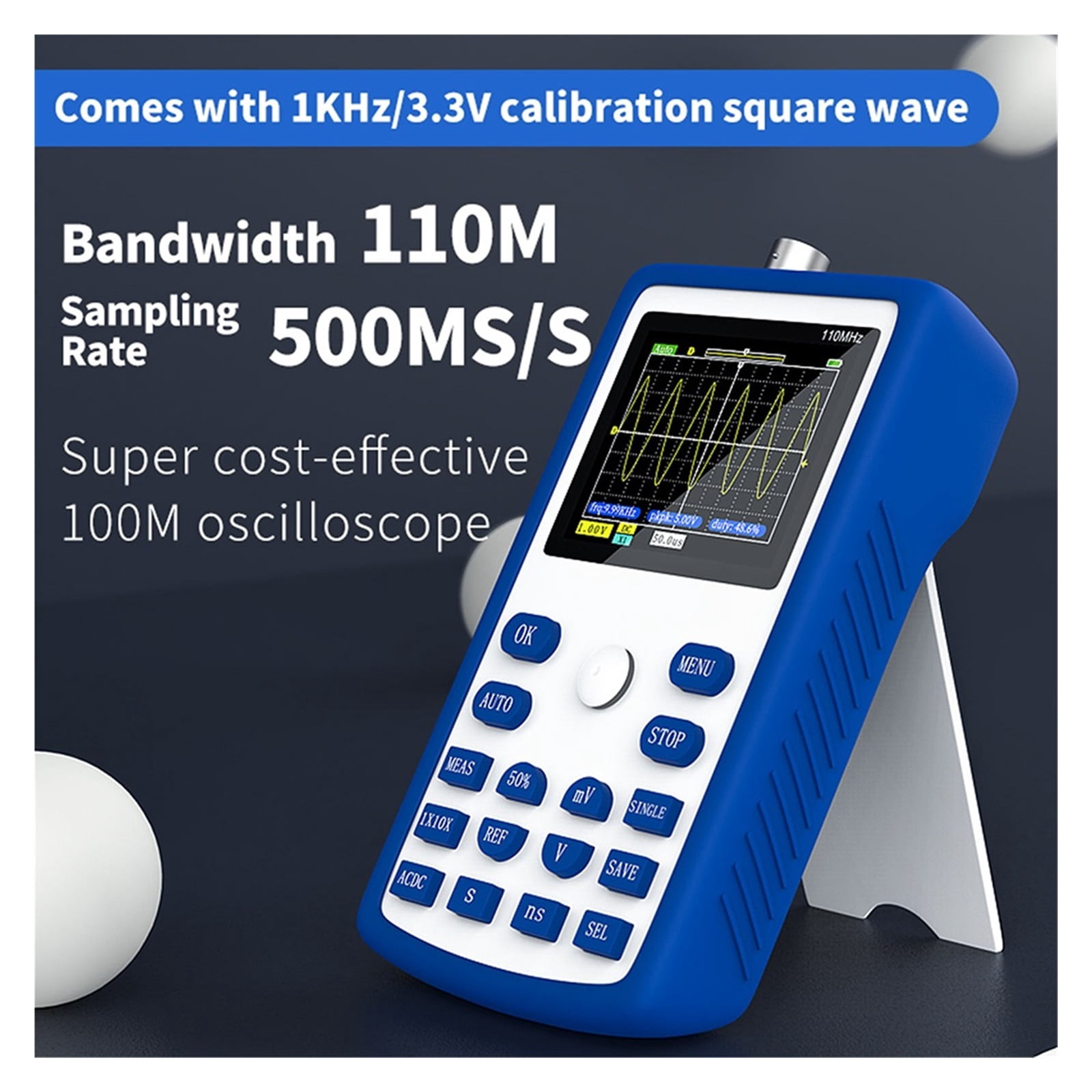

• Performance: This handheld oscilloscope adopts a 500Msa/S sampling rate and 110Mhz analog bandwidth.
• Comfortable: This handheld digital oscilloscope is designed with a nonslip and anti-drop sleeve to provide a good touch feeling.

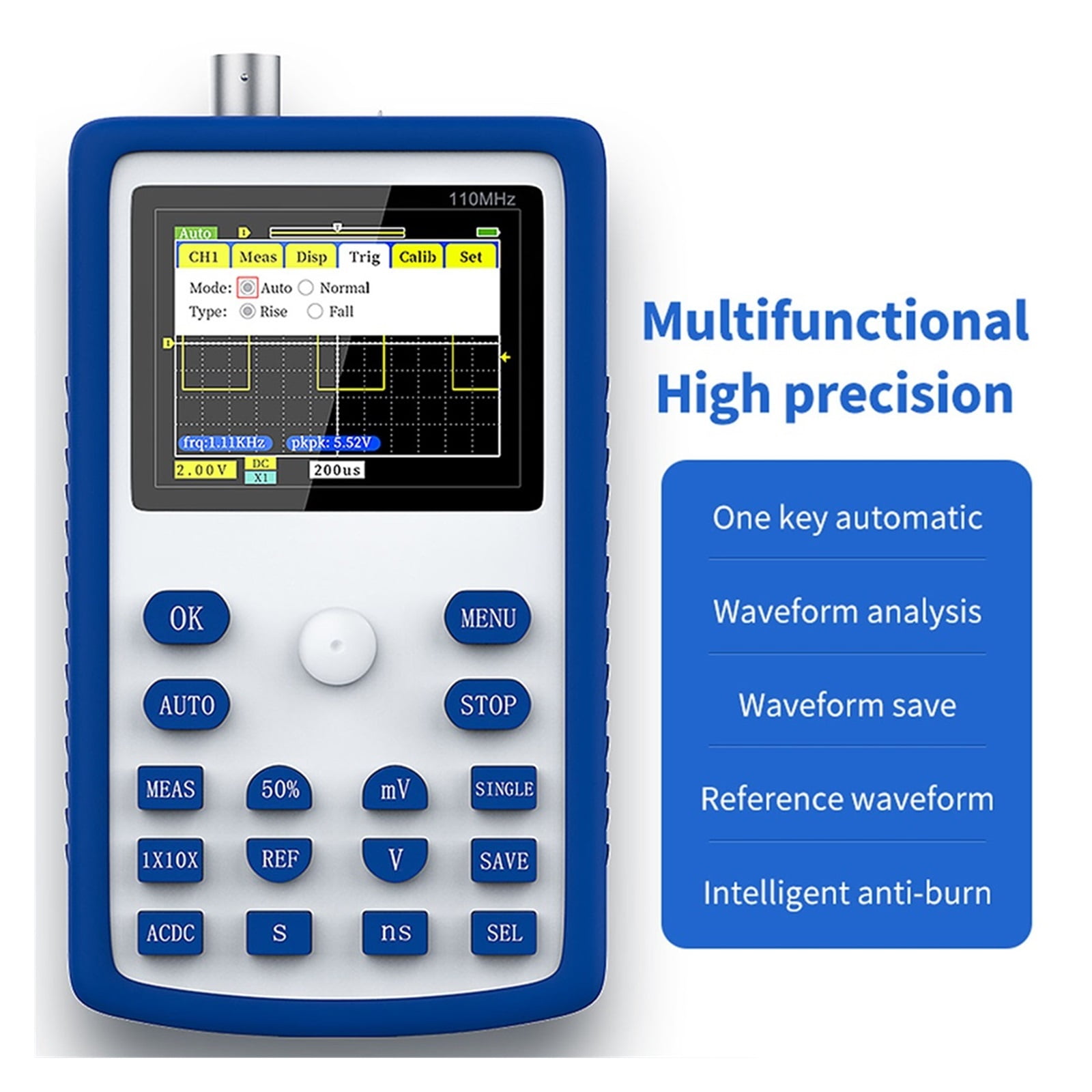

• 2.4 inch screen: This handheld oscilloscope features digital display, and can display waveform clearly.
• User-friendly: This digital oscilloscope features a button operation and can easily store the waveform and compare it to the current waveform.
• More practical: This handheld portable oscilloscope has a 1Khz self-test square waveform and the storage depth is up to 12kpts.
